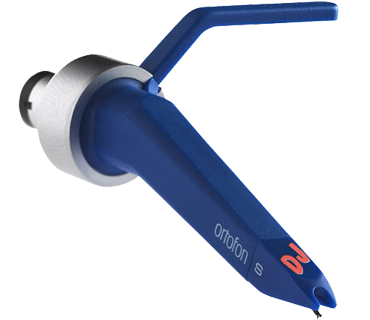

Ortofon Concorde DJ S

Specificaties Ortofon Concorde DJ S

Widely used by all kinds of DJ's! We get very good comments on this cartridge. We don't like its colour though, but maybe you do?

Details Ortofon Concorde DJ S

Output voltage at 1000 Hz, 5cm/sec.: 6 mV
Channel balance at 1 kHz: 2 dB
Channel separation at 1 kHz: 23 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-20.000 Hz
Frequency response: 20-18.000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 9 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Equivalent stylus tip mass: 0,6 mg
Tracking force range: 2,0-4,0 g (20-40 mN)
Tracking force, recommended: 3,0 g (30 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge colour, body/stylus: Blue/Blue
Cartridge weight: 18,5 g
Replacement stylus unit: DJ S
