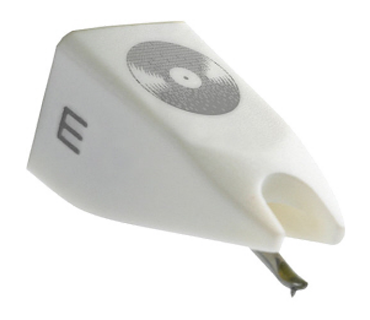

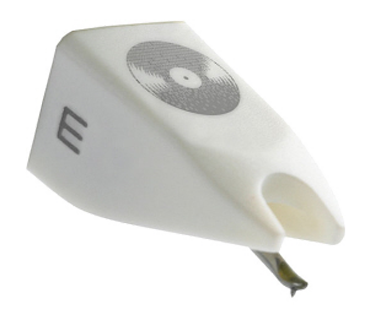

Ortofon Stylus Arkiv

Specificaties Ortofon Stylus Arkiv

Reservenaald Arkiv

Details Ortofon Stylus Arkiv

* Output voltage at 1000 Hz, 5cm/sec. 6 mV
* Channel balance at 1 kHz 2 dB
* Channel separation at 1 kHz 23 dB
* Channel separation at 15 kHz 15 dB
* Frequency range at - 3dB 20-22.000 Hz
* Frequency response 20-20.000 Hz ± 2 dB
* Tracking ability at 315Hz at recommended tracking force 80 µm
* Compliance, dynamic, lateral 9 µm/mN
* Stylus type Special elliptical
* Stylus tip radius r/R 13/25 µm
* Tracking force range 2,0-4,0 g (20-40 mN)
* Tracking force, recommended 3,0 g (30 mN)
* Tracking angle 20°
* Internal impedance, DC resistance 750 Ohm
* Internal inductance 450 mH
* Recommended load resistance 47 kOhm
* Recommended load capacitance 200-600 pF
* Cartridge colour, White/White
* Replacement stylus unit Arkiv
