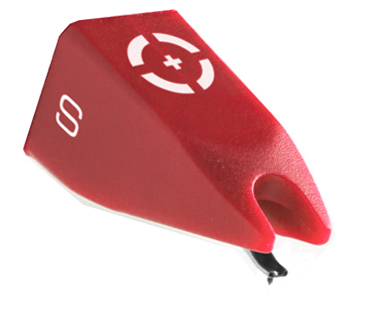

Ortofon Stylus DigiTrack
Ortofon Stylus DigiTrack
€ 39,00
incl. BTW
Levertijd: 2 dag(en)
incl. BTW
Levertijd: 2 dag(en)
Specificaties Ortofon Stylus DigiTrack
Reservenaald Digitrack
Details Ortofon Stylus DigiTrack
* Output voltage at 1000Hz, 5cm/sec.8 mV
* Channel balance at 1kHz1,5 dB
* Channel separation at 1kHz22 dB
* Channel separation at 15 kHz15 dB
* Frequency range at -3dB20-20.000 Hz
* Frequency response20-18.000 Hz -3dB/-2 dB
* Tracking ability at 315 Hz at recommmende tracking force90 ?m
* Compliance, dynamic lateral12 ?m/m N
* Stylus typeSpherical
* Stylus tip radius--
* Tracking force range2,0-4,0 g (20-40 mN)
* Tracking force recommended3,0 g (30 mN)
* Tracking angle-
* Internal impedance, DC resistance-
* Internal inductance-
* Recommended load resistance-
* Recommended load capacitance-
* Replacement stylus unitDigitrak
