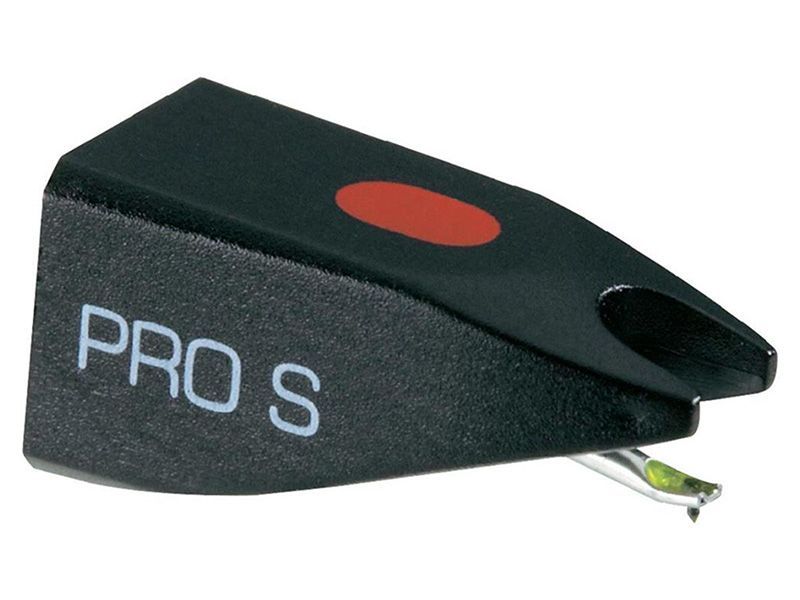

Ortofon stylus Pro S

Specificaties Ortofon stylus Pro S

Replacement stylus for your Ortofon Concorde Pro S or OM Pro S cartridge

Details Ortofon stylus Pro S

Output voltage at 1000 Hz,
5cm/sec.: 5 mV
Channel balance at 1 kHz: 2 dB
Channel separation at 1 kHz: 20 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-20.000 Hz
Frequency response: 20-18.000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 7 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Equivalent stylus tip mass: 0,5 mg
Tracking force range: 3,0-5,0 g (30-50 mN)
Tracking force, recommended: 4,0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
