Rode NT5 matched pair condensator studio microfoon

Specificaties Rode NT5 matched pair condensator studio microfoon

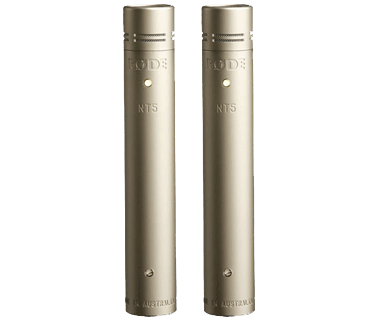

The NT5 matched pairs are a masterpiece of small-diaphragm cardioid-condenser microphone design.

Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.

Finished in durable satin nickel, the NT5 is intended for either single or stereo X/Y mic set-ups. The NT5 matched pairs comesupplied in a custom carry case with windshields and mounts.

Details Rode NT5 matched pair condensator studio microfoon

Power P48 (48V), P24 (24V) phantom supply
Acoustic Principle Pressure gradient
Directional Pattern Cardioid
Frequency range 20 Hz - 20 kHz
Output impedance 100Ω
Signal noise ratio 78 dB SPL (A - weighted per IEC651)
Equivalent noise <16 dB SPL (A - weighted per IEC651)
Maximum SPL 143dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum output voltage +13.9dBu (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity -38 dB re 1 Volt/Pascal (12 mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Weight 101gm
Dimensions 118mmH x 20mmW x 20mmD
