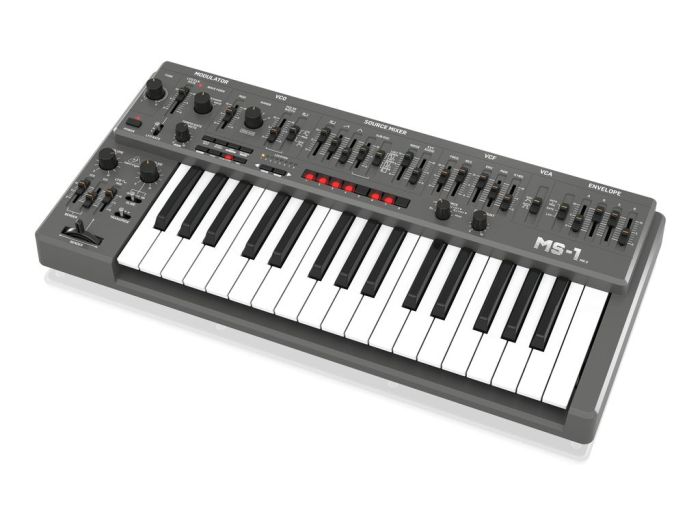

Behringer MS-1 MK II-GY

Synthesizer Architecture

• Implementation Analog

Keyboard

• Keys 32 semi-weighted, full size keys

• Keyboard sensing Note on/off, velocity

VCO Section

• Knobs Tune (±50 cent)

• Range selector (16', 8', 4', 2')

• Faders Modulation depth

• Pulse width modulation (50% to minimum)

• Switches PWM mode (LFO, manual, envelope)

Modulator Section

• Knobs Waveform selector (triangular, square, random, noise)

• Faders LFO/CLK rate

• Switches LFO/CLK rate selector: low (0.1 Hz to 30 Hz), medium (0.2 Hz to 60 Hz), high (0.3 Hz to 120 Hz)

• LED Rate indicator

Source Mixer Section

• Faders Pulse level

• Sawtooth level

• Triangular level

• Sub oscillator level

• Noise level

• External audio level

• Switches Sub oscillator waveform selector

• (1 octave down, 2 octave down, narrow 2 octave down)

VCF Section

• Faders Cutoff frequency (10 Hz to 20 kHz)

• Resonance (0 to self-oscillation)

• Envelope depth

• Modulation depth

• Keyboard follow (0 to 100%)

• Knobs FM source selector

• (pulse, saw, sub osc 1 octave down, 2 octave down, narrow 2 octave down, noise)

• FM depth

VCA Section

• Switches Envelope, gate selector

Envelope Section

• Faders Attack time (2 ms to 4 s)

• Decay time (2 ms to 10 s)

• Sustain level (0 to 100%)

• Release time (2 ms to 10 s)

• Switches Gate-trigger selector (gate + trigger, gate, LFO)

Controllers Section

• Knobs Volume

• Glide time (0 to 5 s)

• Switches Glide (on, off)

• Transpose (low, medium, high)

• Faders VCO bender sensitivity

• VCF bender sensitivity

• LFO modulation

• Wheel/lever Bender (with LFO MOD switch)

• Handle Controls LFO on/off switch

• Bender thumbwheel (increase pitch only)

Sequencer/Arpeggiator Section

• Steps 32 steps maximum per pattern

• Number of patterns 64 patterns maximum

• Memory storage 8 banks with 8 patterns each

• Switches Hold/rest, reset/accent, arp/set end, pattern/ bank, shift, page, play/stop, record, keyboard mode, step mode, steps 1-8

• Knob Tempo/gate length

Connectivity

• MIDI In/Out/Thru 5-pin DIN / 16 channels

• Output 1/4" TS, max. +10 dBu

• Headphones 1/4" TRS, max. +2 dBu @32 Ohm

• External audio input 1/4" TS, max. +20 dBu

• Footswitch (optional) Sequencer hold (1/4" TS)

• 3.5 mm TS inputs VCF control voltage (0 to 7 V)

• External clock (+2.5 V or more)

• Control voltage (1 V/octave, 0 to 7 V)

• Gate (+2.5 V or more)

• 3.5 mm TS outputs Control voltage (1 V/octave, 0.417 to 5 V)

• Gate (off= 0 V, on= 10 V)

• Velocity (0 to 5 V)

• 3.5 mm Handle connectors Mod, grip

USB

• Type Class compliant USB 2.0, type B

• Supported operating systems Windows 7 or higher

• Mac OS X 10.6.8 or higher

Power Requirements

• External power adapter 9 VDC, 1700 mA

• Power consumption 5.4 W maximum

Environmental

• Operating temperature range 5° C to 45° C (41° F to 113° F)

Physical

• Dimensions (H x W x D) 85 x 569 x 267 mm (3.4 x 22.4 x 10.5")

• Weight 4.6 kg (10.1 lbs)

• Shipping weight 7.1 kg (15.6 lbs)
