Cranborne Audio 500R8

De Cranborne Audio 500R8 is de basis voor 8 van de modules uit de 500-serie. Het is ook een 26/28 kanaals USB audio-interface, monitor controller, ADAT-interface en discrete analoge mixer.

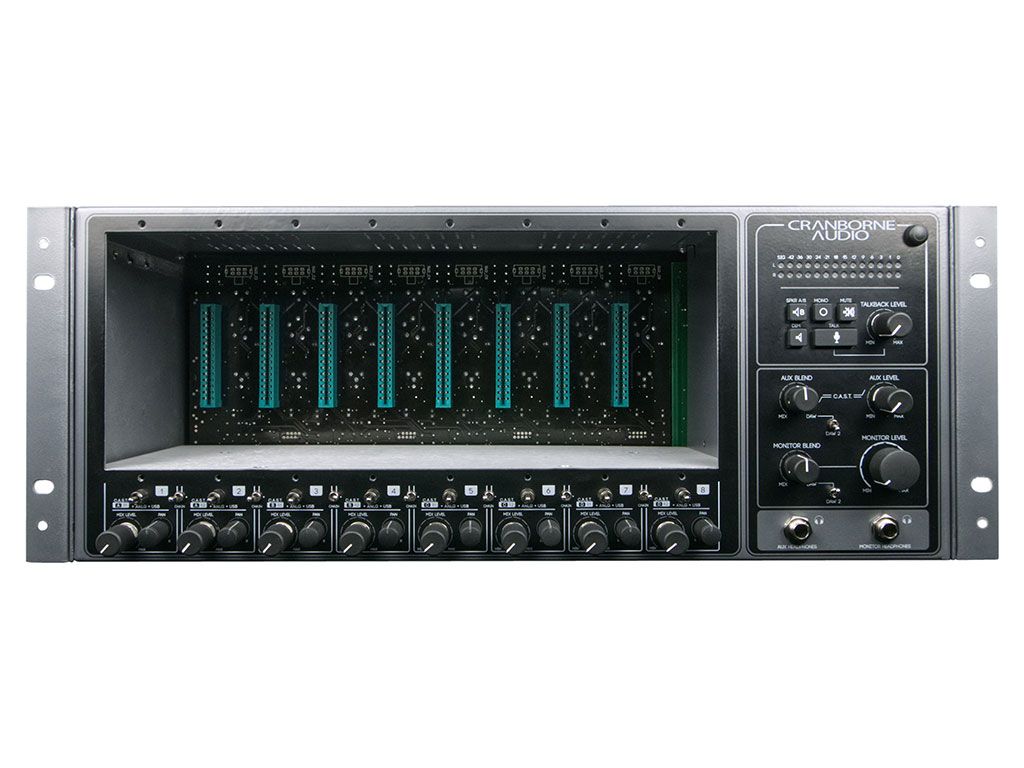

Cranborne Audio 500R8 Audio Interface Cranborne Audio 500R8 rear

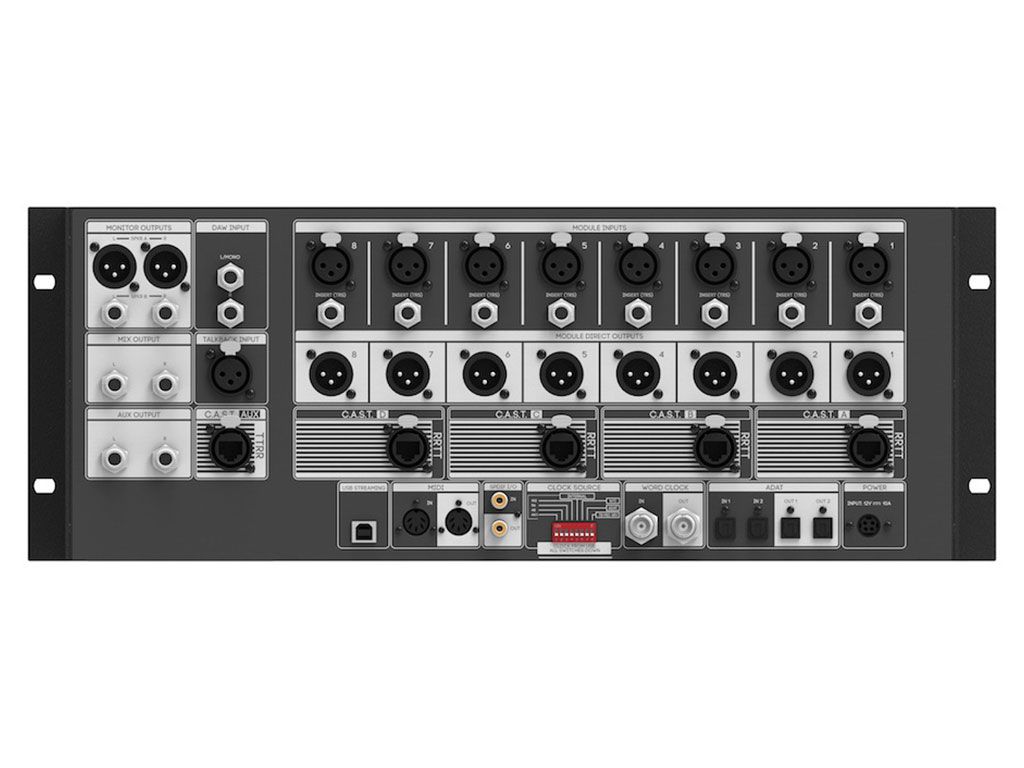

Cranborne Audio 500R8 rear angle
Cranborne Audio 500R8 Audio Interface
Niet meer leverbaar
  • Grote voorraad, snelle levering
  • Fysieke showroom in Haarlem
  • Retourneren kan ook in de winkel
Schrijf jouw eigen review

Reviews

Schrijf een review

Cranborne Audio 500R8

Specificaties Cranborne Audio 500R8

De 500R8 brengt de analoge sound met USB-intergratie op een geweldige manier terug in je workflow. Zo is er nu de mogelijkheid om je favoriete 500-serie modules te gebruiken als uw eigen aanpasbare tracking-front-end rechtstreeks in uw DAW.

De combinatie van zeer nauwkeurige clock en krachtige digitale conversie zorgt ervoor dat elke subtiele nuance van uw analoge signaal met de grootste details wordt vastgelegd, vrij van ongewenste digitale artefacten uit het conversieproces. Ook heeft de 500R8 een breed dynamisch bereik dankzij zijn hoge headroom en lage noise-floor.

Gegevens Cranborne Audio 500R8

- 28-in/30-out USB 2.0 audio interface

- Ultra low-latency USB 2.0 interface with high-stability and compatibility with a wide range of devices.

- 16in/16out ADAT Interface

- 2in/2out S/PDIF Coaxial Interface

- MIDI I/O

- High-performance AD/DA conversion

- ADCs = 121dB (unweighted) signal-to-noise ratio and - 112dB THD+N.

- DACs = 127dB (unweighted) signal-to-noise and -115dB THD+N.

- 0dBFs = 26.5dBu for huge headroom when recording and the ability to drive modules for a wider range of effects.

- Master reference-quality internal clock

- Capable of 44.1, 48, 88.2, 96, and 192kHz operation.

- Sub 0.5 picoseconds of jitter.

- Dedicated Word Clock Input and Output via BNC.

- External sync options using Word Clock BNC, S/PDIF, or ADAT.

- Monitor controller with talkback

- Speaker A/B switching, Mono check, Dim, mute, and 28-segment output meter.

- Dedicated talkback input with phantom power, push-to-talk activation, and automatic routing to all headphone and CAST facilities.

- Easy-access illuminated front panel controls for all monitor controller functions.

- Analogue summing mixer

- 8-into-2 analogue summing mixer with 26.5dBu of headroom, dedicated ADC, and balanced 1/4" jack outputs.

- CAST link port for increasing summing mixer to 16-into-2 using Cranborne Audio 500ADAT (sold separately).

- Zero-latency artist mixer

- Zero-latency analogue artist mixer with physical level/pan controls per channel and DAW return blend controls.

- 2 high-power headphone outputs with independent blend and level controls

- High-current 8-slot 500 series rack

- 250mA current per-slot with headroom.

- XLR inputs, XLR line outputs, TRS Inserts (pre-ADC) per 500 series slot.

- Module source switching options to send Analogue, USB or external CAST signals through your favourite 500 series modules.

- Module bypass switches per-slot allowing 500R8 to be used without 500 series modules inserted.

- CAST Compatible

- CAST ports per channel for relocating analogue I/O around studio using passive or active CAST breakout boxes via standard shielded Cat 5 (boxes coming soon).

- 24v, 5 amp external locking power supply

- External power supply for improved analogue audio performance and heat dissipation.

- Designed, Engineered, and Manufactured In The UK

- Each and every 500R8 is extensively tested by a team of dedicated engineers to ensure reliability and consistency.
