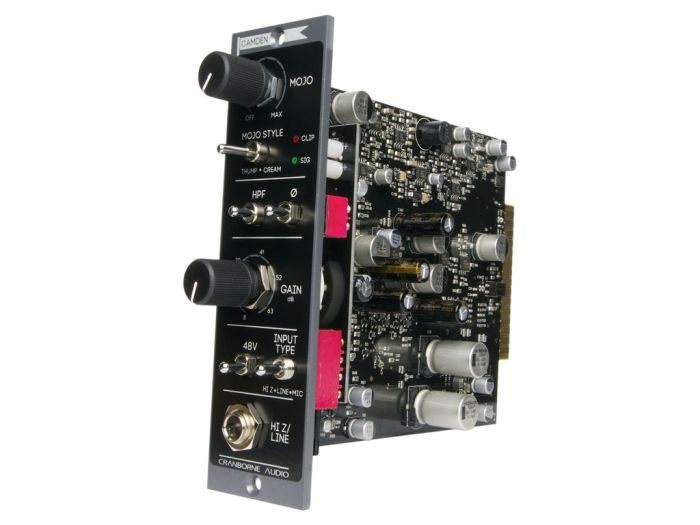

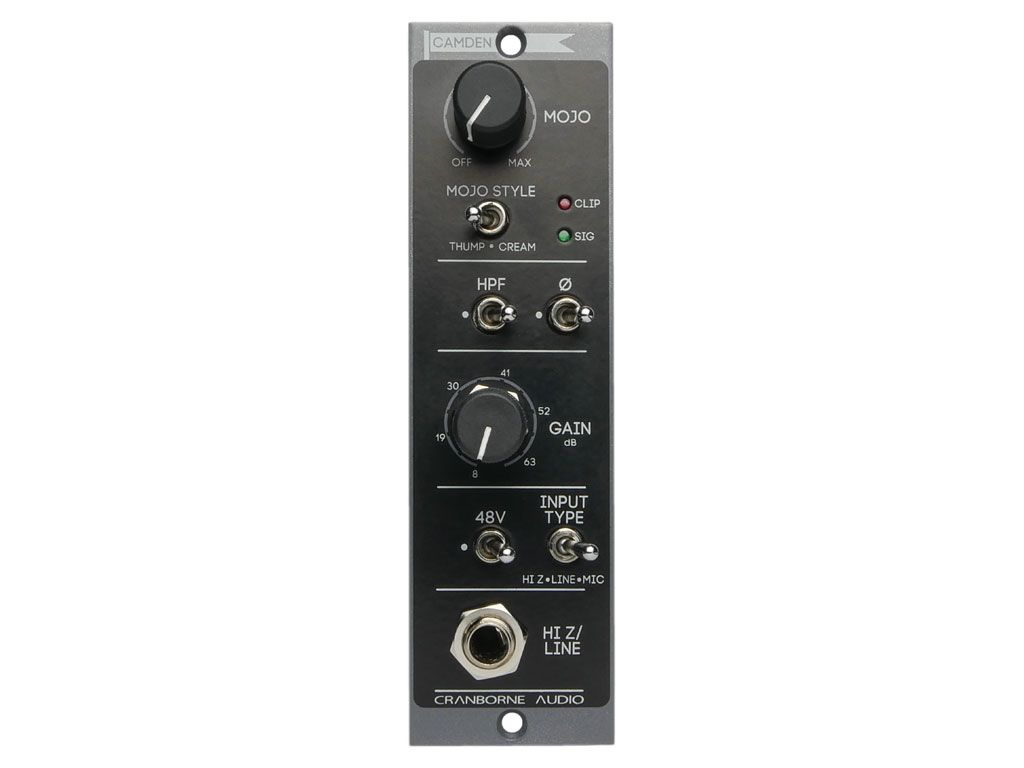

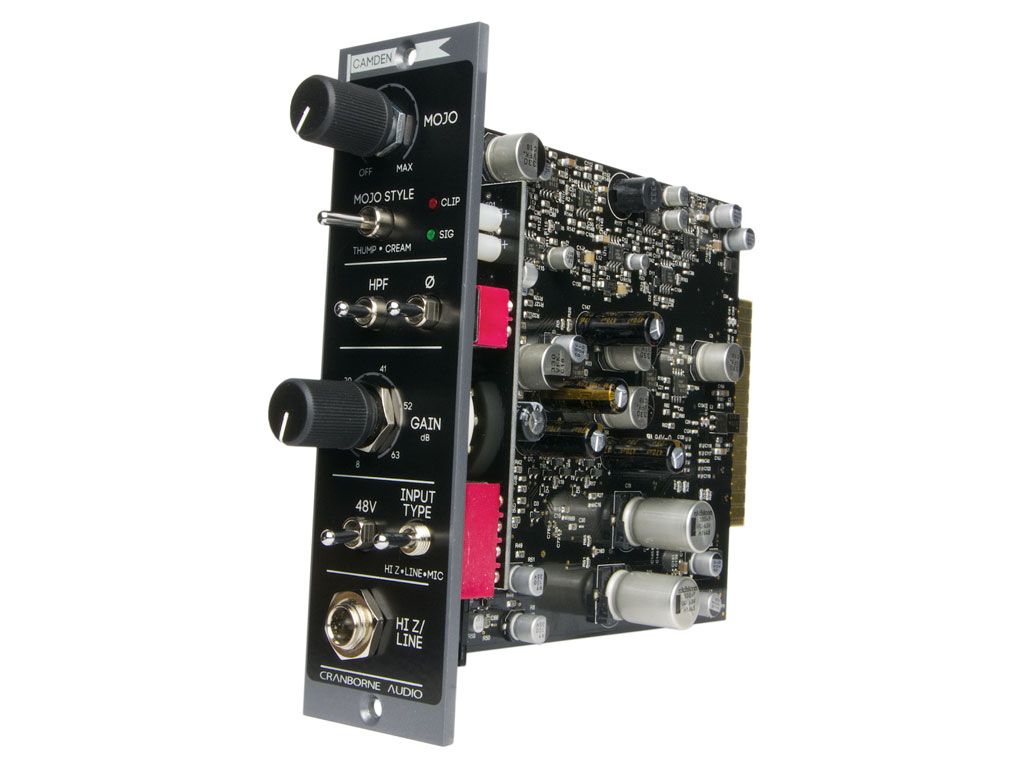

Cranborne Audio Camden 500

Camden 500 is the most astoundingly clean, linear, and transparent preamp you’ve ever heard. Astoundingly transparent and detailed 500 series mic, line, and hi-z preamp with mojo - two analogue saturation styles that emulate vintage valve and transformer effects.
€ 339,00 Incl. BTW
Op werkdagen voor 17u besteld, morgen in huis*
Ophalen in onze winkel?
  • Grote voorraad, snelle levering
  • Fysieke showroom in Haarlem
  • Retourneren kan ook in de winkel

Video Cranborne Audio Camden 500

Schrijf jouw eigen review

Reviews

Schrijf een review

Cranborne Audio Camden 500

Specificaties Cranborne Audio Camden 500

Camden 500 is the most astoundingly clean, linear, and transparent preamp you’ve ever heard. Astoundingly transparent and detailed 500 series mic, line, and hi-z preamp with mojo - two analogue saturation styles that emulate vintage valve and transformer effects.

Camden 500 was designed from the ground-up and features a completely original, custom-designed ‘Camden’ preamp topology that achieves stunning low-noise and low-distortion performance as well as frequency and phase linearity at all gain settings. The sum result is -129.8dB EIN (150ohm, unweighted), THD+N as low as 0.0002%, frequency response of ±0.7dB from 5Hz to 200kHz at max gain and <2° phase shift @ 20Hz – 20kHz.

For moments when that extra bit of ‘British’ character is required, rather than use a transformer which always colours the sound, Cranborne Audio developed Mojo - two discrete analogue saturation styles that transform Camden 500 into the fattest, warmest, and most characterful preamp in your arsenal - all at the turn of a dial. Unlike transformer and other legacy designs, Mojo can be subtle, it can also be exaggerated, but it can also be bypassed.

Gegevens Cranborne Audio Camden 500

Minimum Gain:

Mic= 8dB, Line = 0dB, Hi-Z = 3dB

Maximum Gain:

Mic = 68dB, Line = 60dB, Hi-Z = 63dB

Input Impedance:

Mic= 8.9kOhms 48v Off, 5.4kOhms 48v ON,

Line = 24.3kOhms

Hi-Z= 1.5MOhm unbalanced, 3MOhm balanced

Max Input Level:

Mic = 17.6dBu (<0.003%)

Line = 26.5dBu (<0.02% THD)

Hi-Z = 24dBu (<0.02% THD)

Output Impedance:

150 Ohms

Max Output Level:

27.5dBu (<0.002% THD, 30dB gain)

Equivalent Input Noise (EIN):

<-129.5dBu, 150 ohm source, unweighted

<-131dBu, 150 ohm source, A-weighted

<-135.5dBu, Inputs common, unweighted

Frequency Response:

±0.25dB, <5 Hz to >200 kHz, 35dB gain

<±1dB, <5 Hz to >200 kHz, max gain

Phase Shift:

<2.25°, 40dB gain, 20Hz to 20kHz

<4°, Max gain, 20Hz to 20kHz

THD+N:

<0.0004%, 1kHz, 35dB gain, 24dBu out

Intermodulation Distortion:

<0.0008%, 50Hz and 7kHz, 35dB gain, 20dBu out

<0.0006%, 50Hz and 7kHz, 35dB gain, 15dBu out

Hi-Pass Filter (HPF)

80Hz, -3dB, 12dB/Oct

Current Draw:

120mA per rail - idle

140mA per rail - typical use case

CMRR:

>70dB, typ >85dB, 35dB gain, 10-20kHz, 100mV

Common mode

Slew Rate:

20V/uS, 35dB gain, 25dBu out

Dimensions (mm):

31.8/133.35/170.11 (w/h/d)
