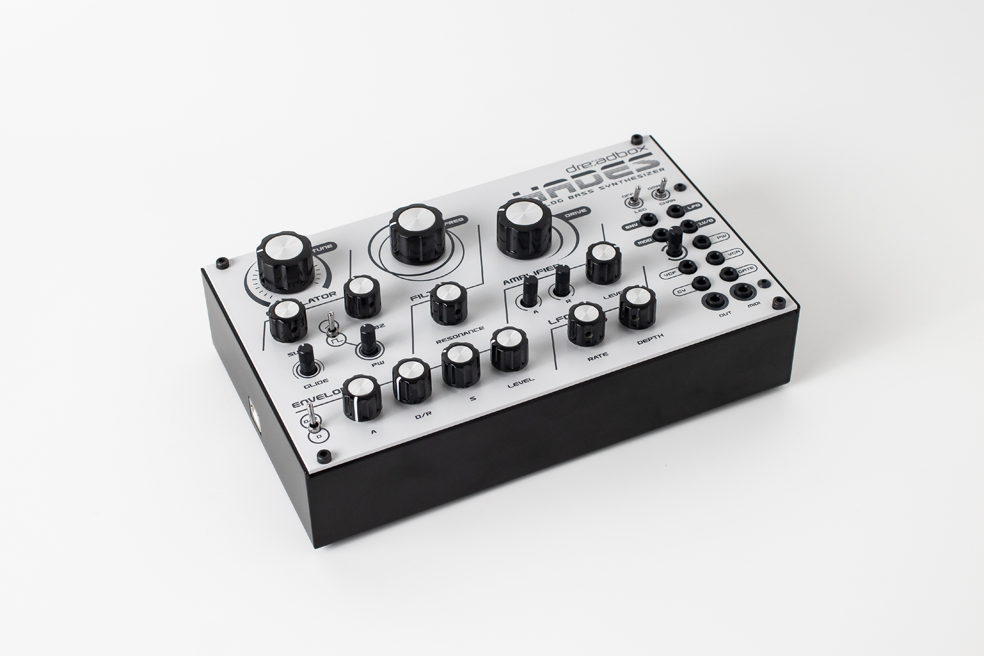

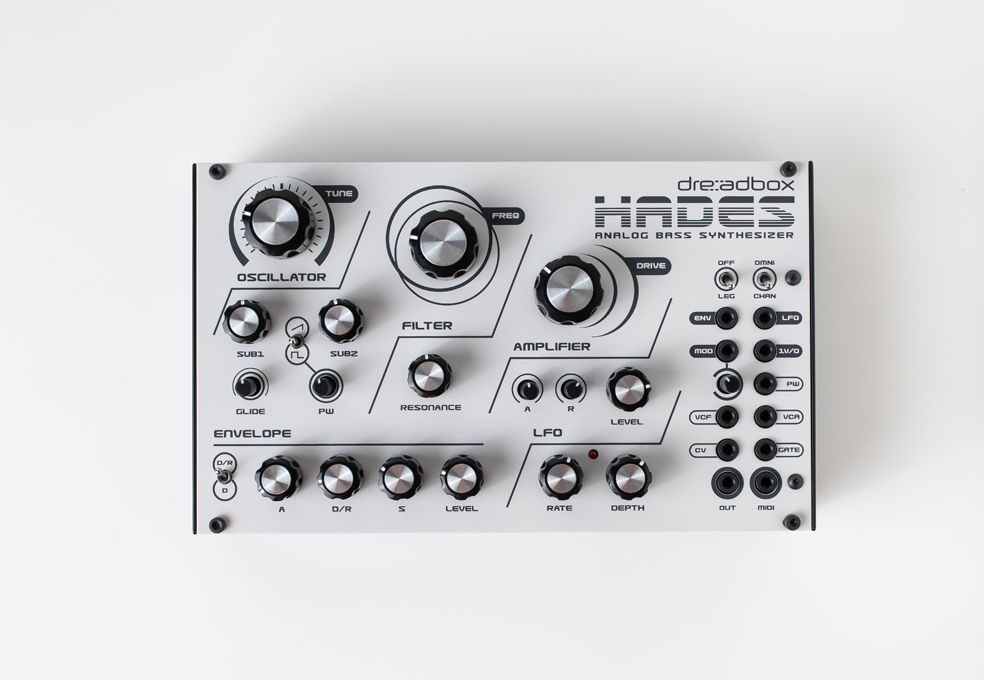

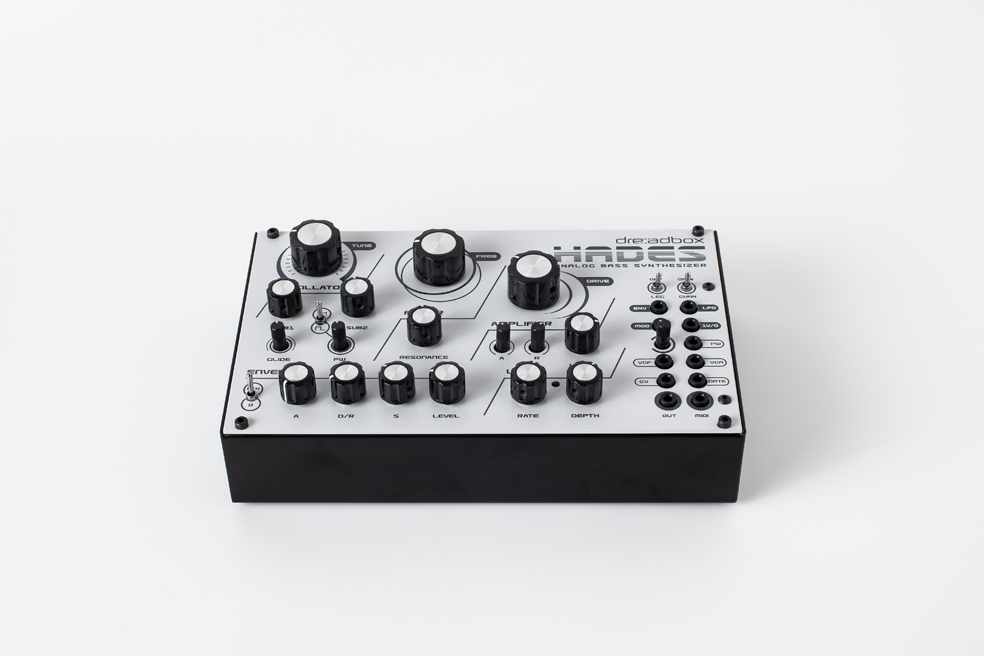

Dreadbox Hades Reissue

Features

• Full analog synth, faithful reproduction of the Hades (produced through 2014-2016 - was limited only to 1000 units at the time)
• Can be used as a standalone unit or as a Eurorack module, 42HP sized
• Powered by a simple USB adapter for maximum portability and energy efficiency
• 1 x VCO with 2 sub octaves
• 2 x waveforms with PW control
• 3-pole resonating low pass filter
• OTA distortion
• OTA VCA
• 1 AD/RS envelope generator and 1 AR, drastically improved from the original version
• Triangle wave LFO with a very wide frequency range
• Special internal Bass boost circuit will make this the ultimate bass engine
• 11 patch points
• CV outs: Envelope, LFO, Modulation wheel, 1v/ocv
• CV ins: PW, filter CUT off, VCA, CV, GATE

Specs

• Midi interface: Midi In 3,5mm type A socket, responds to Pitch , Note On/Off, Mod wheel, Pitch wheel, and to all channels + OMNI channel (via midi learn)
• Mono audio out - Can be also used with headphones, max output is 5vpp- depending on the setting
• All patch points are 3,5mm mono action (except of the MIDI and AUDIO out)
• GATE in : 0-5V
• GATE out : 0-5v
• CV IN: +/-10v , works with 1v/ocv
• CUT cv in: +/-5v
• MOD wheel out: 0-5v
• ENV out :0-5v
• LFO out : +/-5v
• PW in : +/-5v
• VCA cv in: 0-5v
• Suggested room temperature for vco stability: 12 - 35 Celsius
