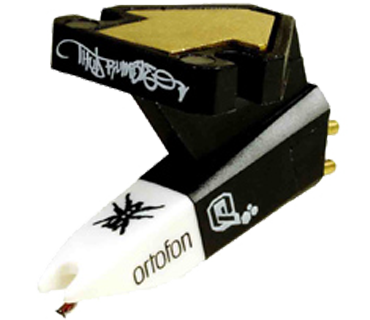

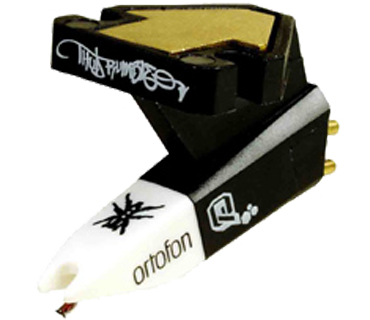

Ortofon OM Q Bert
OM version of Ortofon's Q-Bert cartridge
€ 99,00
€ 69,00 Incl. BTW
Op werkdagen voor 17u besteld, morgen in huis*
- Grote voorraad, snelle levering
- Fysieke showroom in Haarlem
- Retourneren kan ook in de winkel
- Bijna altijd direct een expert aan de lijn
Productinformatie Ortofon OM Q Bert
Apart from sounding good, a professional cartridge has to be rugged, and all the Ortofon disco cartridges are very rugged indeed. Several Ortofon technologies make it possible to realize high sound quality and low record wear at the high tracking forces that are necessary in disco environments. The range of disco cartridges from Ortofon covers the needs from the most demanding DJ´s.
Tracking: Ortofon OM Q-Bert
Output voltage at 1000 Hz, 5cm/sec: 11 mV
Channel balance at 1 kHz: 1,5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: -
Frequency range at - 3dB: 20-20.000 Hz
Frequency response: 20-20.000 Hz - 3 dB
FIM distortion at recommendedtracking force, DIN 45.542: < 1 %
Tracking ability at 315Hz atrecommended tracking force: 90 µm
Compliance, dynamic, lateral: 12µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Equivalent stylus tip mass: 0,6 mg
Tracking force range: 3,0 g (30 mN)
Tracking force, recommended: 4,0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1680 Ohm
Internal inductance: 920 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-400 pF
Cartridge colour, body/stylus: Black / White
Cartridge weight: 5 g
Replacement stylus unit: Q.Bert
