Antelope Discrete 8

Waardering:
75% of 100
7  beoordelingen
Antelope's Discrete 8 brengt een nieuw niveau aan kwaliteit en kracht naar de thuis studio.
Antelope Discrete 8 Antelope Discrete 8 Antelope Discrete 8

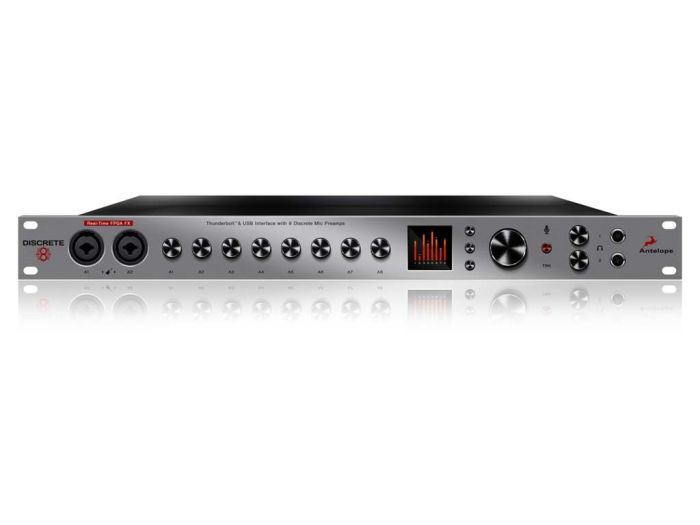

Antelope Discrete 8
€ 1.591,00 € 1.550,00 Incl. BTW
Levertijd: 3 werkdagen (afh. van leverancier)
  • Grote voorraad, snelle levering
  • Fysieke showroom in Haarlem
  • Retourneren kan ook in de winkel

Video Antelope Discrete 8

Schrijf jouw eigen review

Reviews

Schrijf een review

Antelope Discrete 8

Specificaties Antelope Discrete 8

XDJ-RX2 scherm

Inside the Discrete 8 FPGA Accusonic 3D modeling engine you can transform both Edge and Verge into vintage replicas giving you complete control over proximity effect, off-axis response and even allow you to change polar patterns during or after recording. Choose from a collection of classic and expensive microphones and track the results as you monitor live, bringing out a musician’s best possible performance.

Gegevens Antelope Discrete 8

Analog Inputs

- 6 x Mic / Line Inputs

- 2 x Mic / Line / Hi-Z Inputs

Analog Outputs

- 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max

- 1 x ReAmp Out on TRS 1/4 Jacks

- 1 x Line Outs on DB25, +20 dBu max

- 2 x Stereo Headphone Outputs

Mic Preamp

- EIN: -128 dBu (A-weighted)

- Dynamic Range: -121 dB (A-weighted)

- THD: -106 dB

- Max input: +18 dBu

- Gain Range: 65 dB

- D/A Monitor Converter

- Dynamic Range: 124 dB

- THD + N: -101 dB

- A/D Converter

- Dynamic Range: 121 dB

- THD + N: -112 dB

- D/A Converters(Line Out)

- Dynamic Range: 121dB

- THD + N: – 100dB

Digital Inputs

- 2 x ADAT (up to 16CH)

- 1 x S/PDIF

Digital Outputs

- 2 x ADAT (up to 16CH)

- 1 x S/PDIF

- USB I/O

- USB 2.0 Hi-Speed;

- Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

Thunderbolt™ I/O

- 1 x Thunderbolt, 32 channels I/O

CLOCKING

- Word Clock Input

- 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs

- 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System

- 4th Generation Acoustically Focused Clocking

- 64-bit DDS

- Sample Rates (kHz)

- 32, 44.1, 48, 88.2, 96, 176.4, 192

Operating Temperature

- 0-50°C, 32-122°F

- Weight (Approx)

- 3.0 kg/ 6.61 lbs

Dimensions (Approx)

- Width: 483 mm / 19”

- Height: 44 mm / 1.7”

- Depth: 220 mm /8.6”

Power Consumption

- 20 Watts
