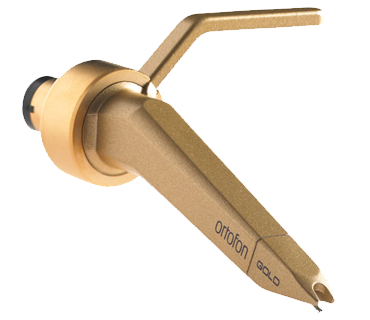

Ortofon Concorde Gold

Waardering:
85% of 100
4  beoordelingen
Let op; nog 1 stuks leverbaar! Wees er snel bij!

Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge. Available only with an elliptical stylus, the Concorde Gold is for DJs who will settle for nothing but the very best.
Niet meer leverbaar
  • Grote voorraad, snelle levering
  • Fysieke showroom in Haarlem
  • Retourneren kan ook in de winkel
Schrijf uw eigen review

Reviews

Schrijf een review

Specificaties Ortofon Concorde Gold

Let op; nog 1 stuks leverbaar! Wees er snel bij!

Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge. Available only with an elliptical stylus, the Concorde Gold is for DJs who will settle for nothing but the very best.

Gegevens

* Output voltage at 1000 Hz, 5cm/sec. 6 mV

* Channel balance at 1 kHz 1,5 dB

* Channel separation at 1 kHz 23 dB

* Channel separation at 15 kHz 15 dB

* Frequency range at - 3dB 20-22.000 Hz

* Frequency response 20-20.000 Hz ± 2 dB

* FIM distortion at recommended tracking force, DIN 45.542 < 1%

* Tracking ability at 315Hz at recommended tracking force 80 µm

* Compliance, dynamic, lateral 7 µm/mN

* Stylus type Special elliptical

* Stylus tip radius r/R 13/25 µm

* Equivalent stylus tip mass 0,5 mg

* Tracking force range 2,0-5,0 g (20-50 mN)

* Tracking force, recommended 3,0 g (30 mN)

* Tracking angle 20°

* Internal impedance, DC resistance 750 Ohm

* Internal inductance 450 mH

* Recommended load resistance 47 kOhm

* Recommended load capacitance 200-600 pF

* Cartridge color, body/stylus Gold/Gold
